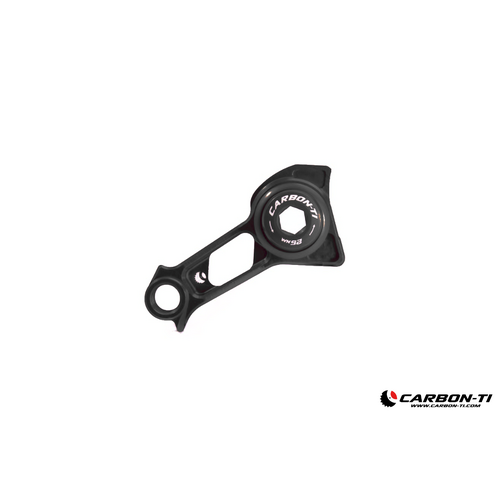

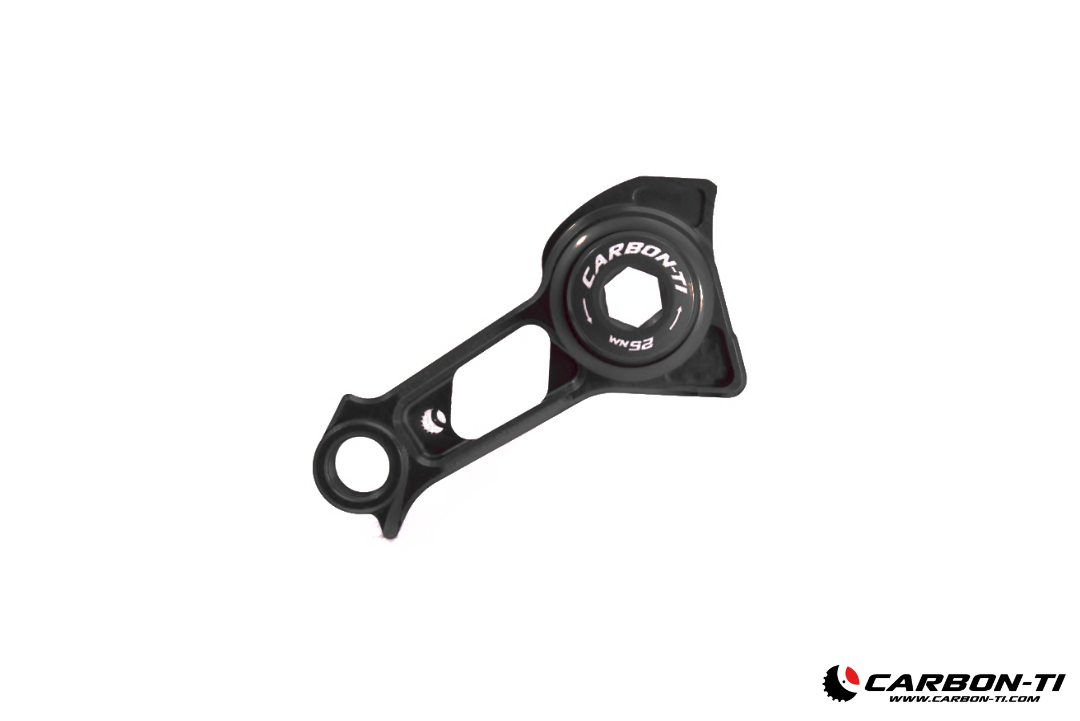

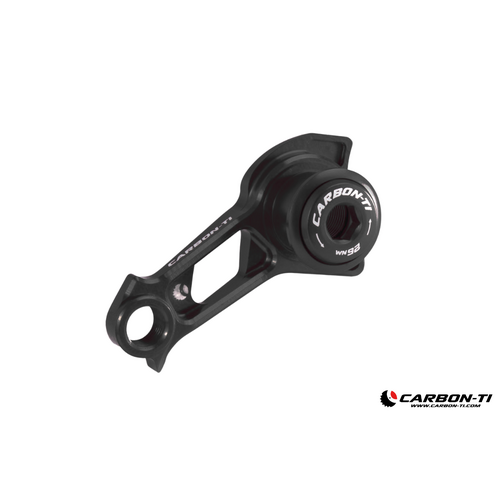

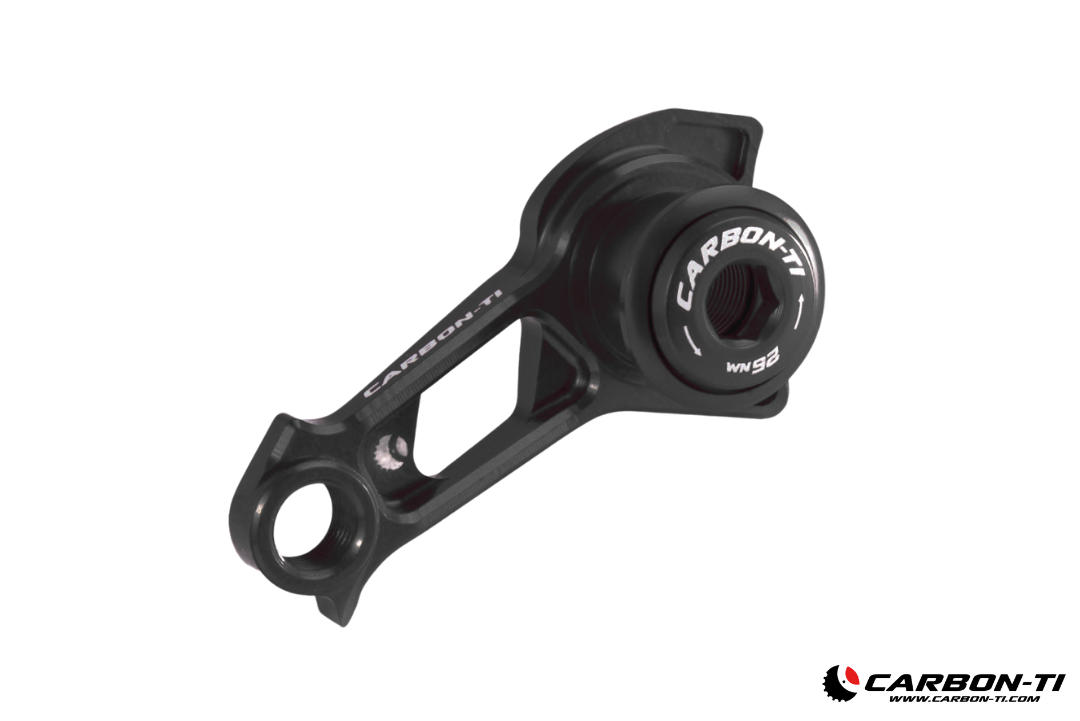

Carbon-Ti X-Hanger DM DA9200 – UDH Direct Mount Derailleur Hanger

The Carbon-Ti X-Hanger DM DA9200 is a precision-machined Direct Mount derailleur hanger designed for frames using the UDH (Universal Derailleur Hanger) standard. CNC-machined from AL7075-T6 aluminium, it creates a rigid and direct interface between Shimano rear derailleurs and UDH-compatible frames.

By eliminating the derailleur B-Link, the X-Hanger DM system increases drivetrain stiffness and improves derailleur alignment, resulting in smoother and more precise shifting under load. The simplified interface also reduces overall weight and improves rear wheel installation and removal.

Developed and validated in race conditions with professional riders, the X-Hanger DM DA9200 combines functional performance with Carbon-Ti’s signature lightweight construction and premium finish.

Key Features

• Direct Mount hanger design for Shimano rear derailleurs

• Eliminates the B-Link interface for improved drivetrain rigidity

• CNC-machined AL7075-T6 aluminium construction

• Optimised derailleur alignment for more precise shifting

• Improved rear wheel installation and removal

• High stiffness-to-weight ratio with reduced overall drivetrain weight

• Designed with a controlled failure point to help protect the frame in the event of a crash

• Premium Carbon-Ti anodised finishes

Specifications

Material

• CNC-machined AL7075-T6 aluminium

Weight

• 31 g

Available Colours

• Black

• Blue

• Gold

• Matte Black

• Red

• Silver

Compatibility

Frame Compatibility

• Frames designed for the UDH (Universal Derailleur Hanger) standard

Thru-Axle

• M12 × 1.00 mm thread

Rear Derailleur Compatibility

Shimano rear derailleurs with removable B-Link, including:

• Shimano Dura-Ace

• Shimano Ultegra

• Shimano 105

UDH Bolt Compatibility

• Compatible with the Carbon-Ti X-Bolt UDH bolt

• Compatible with X-Hanger UDH and X-Hanger DM DA9200 systems

Designed, developed and manufactured 100% in Italy.
