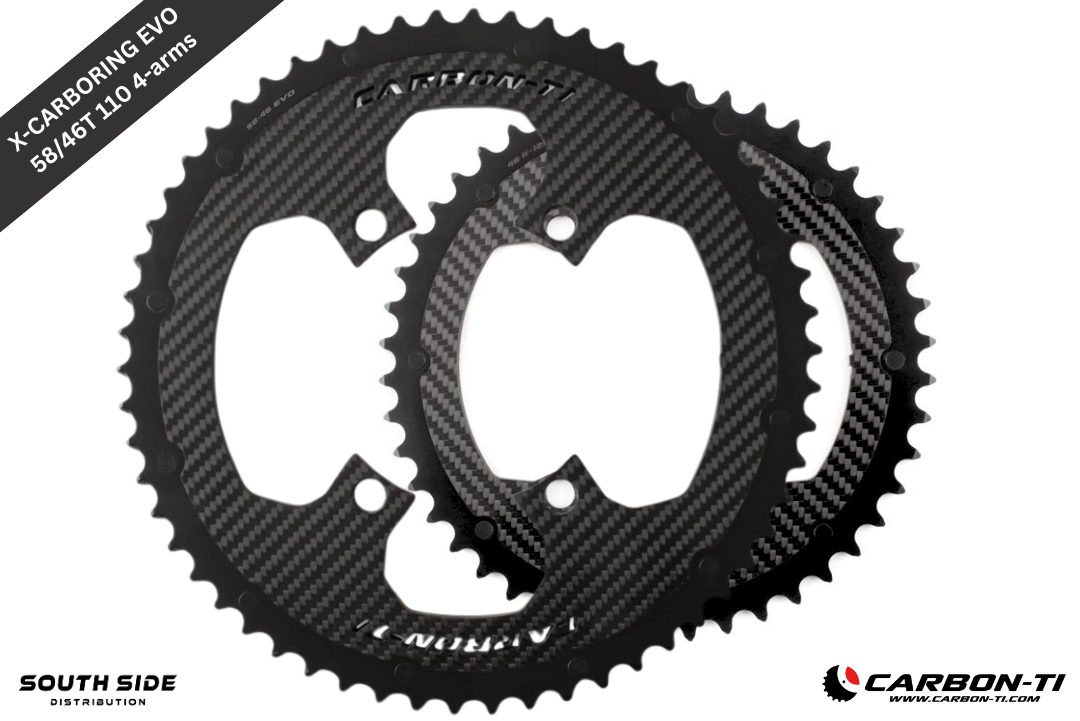

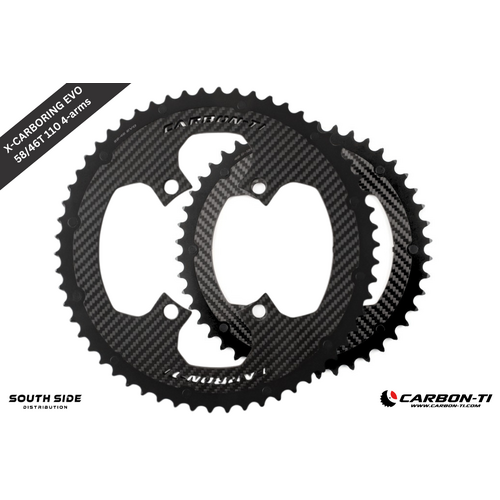

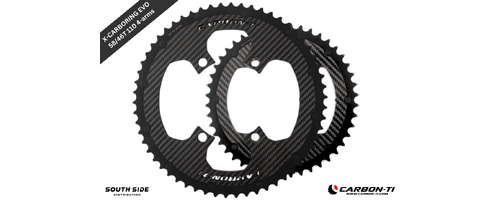

Carbon-Ti X-CarboRing EVO Chainring Set – 58/46T (110 BCD, 4-Arm)

The Carbon-Ti X-CarboRing EVO 58/46T is a premium oversized chainring combination developed for elite-level road, time trial, and triathlon applications where maximum speed, drivetrain efficiency, and aerodynamic optimisation are essential. Manufactured in Italy, this matched outer and inner ring set combines structural carbon fibre with CNC-machined AL7075-T6 alloy teeth and Grade 5 titanium elements to deliver exceptional stiffness, reduced weight, and highly precise front shifting under load.

Designed for 110 BCD – 4-arm cranksets, the EVO platform offers outstanding torsional rigidity and refined shift ramp alignment, making it ideal for powerful riders seeking extended top-end gearing for flat and high-speed race scenarios.

A premium upgrade option for dealers building TT bikes, aero road race machines, and performance-driven custom builds.

Key Features
  • Matched 58T outer / 46T inner combination
  • Structural carbon fibre body with glossy 3K finish
  • CNC-machined AL7075-T6 alloy teeth for durability and precise shifting
  • Grade 5 titanium fixing elements
  • 110 BCD – 4-arm interface
  • Optimised for Shimano 11–12 speed and SRAM 11 speed drivetrains
  • High torsional stiffness for improved power transfer
  • 100% designed, developed, and manufactured in Italy
Specifications
  • Tooth Count: 58T outer / 46T inner
  • BCD: 110 mm
  • Mount: 4-arm
  • Construction: Carbon fibre / AL7075-T6 alloy / Titanium Grade 5
  • Application: 2x Road / TT / Triathlon
Crank & Power Meter Compatibility
Compatible with 110 BCD – 4-arm cranksets including:
  • SRM Origin (all models)
  • Rotor INSpider
Groupset Compatibility
  • Shimano Road 11 speed
  • Shimano Road 12 speed
  • SRAM 11 speed road groups
  • Not compatible with SRAM AXS 12 speed groups (use X-AXS chainrings instead)
Recommended Bolt Kit
  • X-Fix ROAD specific kit – AL7075-T6 alloy, laser-engraved and available in multiple anodised colours
Workshop Note
The 58T outer ring must be paired with the matching X-CarboRing EVO 46T inner ring to ensure correct shift ramp alignment and optimal front shifting performance.

(XCRE5846I110SH)

SKU XCRE5846I110SH
Brand Carbon-Ti
Shipping Weight 0.5000kg
Shipping Width 0.020m
Shipping Height 0.250m
Shipping Length 0.250m
Shipping Cubic 0.250000000m3
