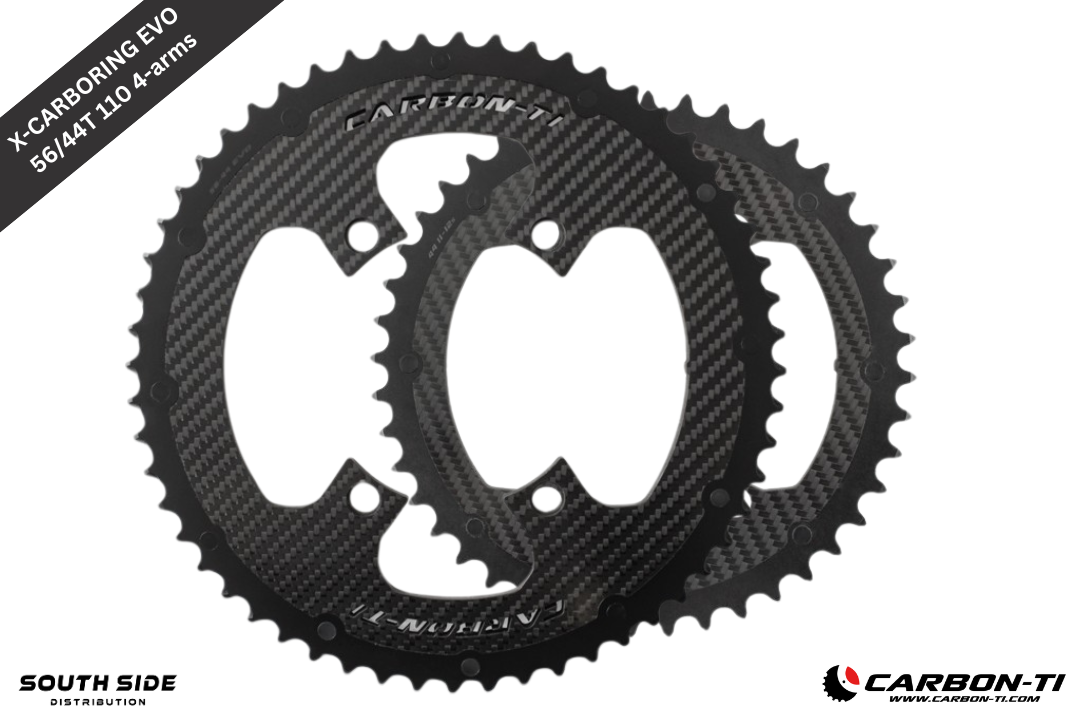

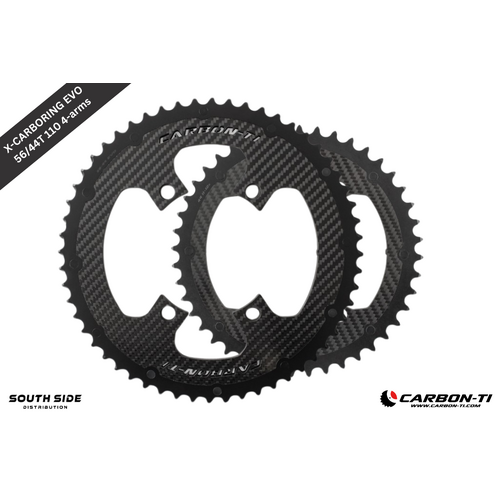

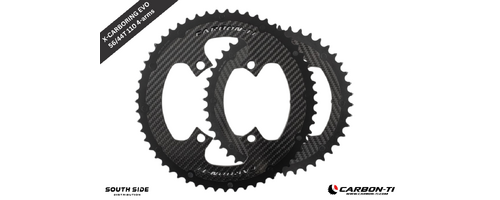

Carbon-Ti X-CarboRing EVO Chainring Set – 56/44T (110 BCD, 4-Arm)

The Carbon-Ti X-CarboRing EVO 56/44T is a premium large-format chainring combination engineered for elite road, time trial, and triathlon applications where maximum top-end gearing and drivetrain efficiency are critical. Manufactured in Italy, this matched outer and inner ring set combines structural carbon fibre with CNC-machined AL7075-T6 alloy teeth and Grade 5 titanium elements to deliver exceptional stiffness, reduced weight, and precise front shifting performance under high load.

Designed for 110 BCD – 4-arm cranksets, the EVO platform offers outstanding torsional rigidity and optimised shift ramp alignment, making it ideal for high-speed race builds and performance-focused custom projects.

A strong premium upgrade category for dealers building TT bikes, fast road race machines, and high-performance endurance setups.

Key Features
  • Matched 56T outer / 44T inner combination
  • Structural carbon fibre body with glossy 3K finish
  • CNC-machined AL7075-T6 alloy teeth for durability and precise shifting
  • Grade 5 titanium fixing elements
  • 110 BCD – 4-arm interface
  • Optimised for Shimano 11–12 speed and SRAM 11 speed drivetrains
  • High torsional stiffness for efficient power transfer
  • 100% designed, developed, and manufactured in Italy
Specifications
  • Tooth Count: 56T outer / 44T inner
  • BCD: 110 mm
  • Mount: 4-arm
  • Construction: Carbon fibre / AL7075-T6 alloy / Titanium Grade 5
  • Application: 2x Road / TT / Triathlon
Crank & Power Meter Compatibility
Compatible with 110 BCD – 4-arm cranksets including:
  • SRM Origin (all models)
  • Rotor INSpider
Groupset Compatibility
  • Shimano Road 11 speed
  • Shimano Road 12 speed
  • SRAM 11 speed road groups
  • Not compatible with SRAM AXS 12 speed groups (use X-AXS chainrings instead)
Recommended Bolt Kit
  • X-Fix ROAD specific kit – AL7075-T6 alloy, laser-engraved and available in multiple anodised colours
Workshop Note
The 56T outer ring must be paired with the matching X-CarboRing EVO 44T inner ring to ensure correct shift ramp alignment and optimal front shifting performance.

(XCRE5644I110SH)

SKU XCRE5644I110SH
Brand Carbon-Ti
Shipping Weight 0.5000kg
Shipping Width 0.020m
Shipping Height 0.250m
Shipping Length 0.250m
Shipping Cubic 0.250000000m3
