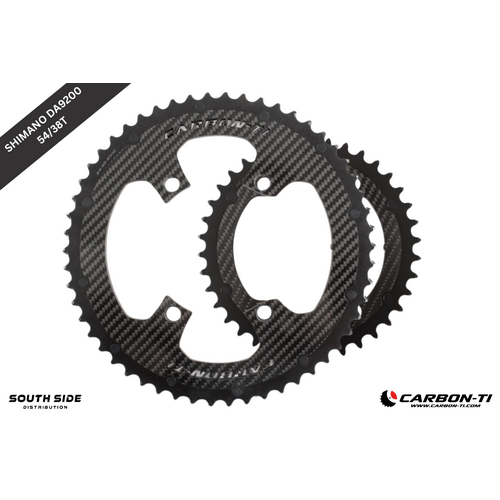

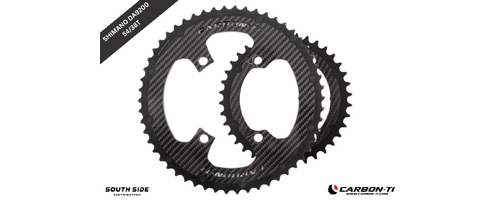

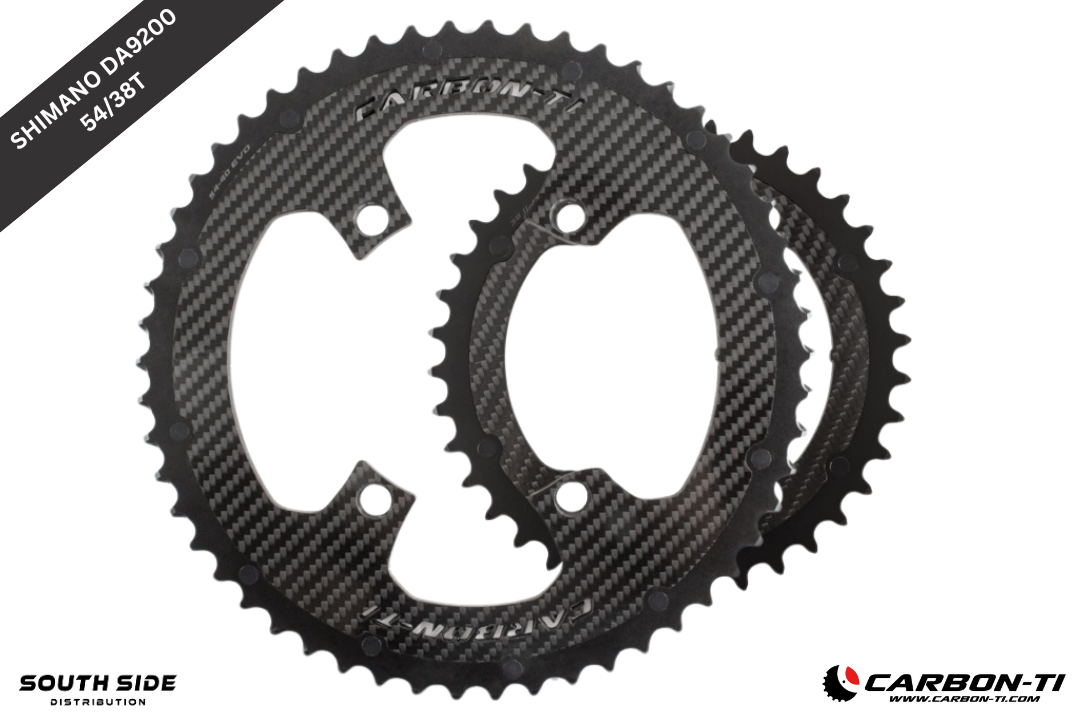

Carbon-Ti X-CarboRing EVO Chainring Set – 54/38T x 110 DA9200 (4-Arm)

The Carbon-Ti X-CarboRing EVO 54/38T DA9200 is a premium race-oriented chainring combination engineered specifically for Shimano’s 12-speed road cranksets. Manufactured in Italy, this matched outer and inner ring set combines structural carbon fibre with CNC-machined AL7075-T6 alloy teeth and Grade 5 titanium elements to deliver exceptional stiffness, low weight, and highly precise front shifting under load.

Designed around Shimano’s 110 BCD – 4-arm interface, this DA9200-specific configuration ensures optimal compatibility with Dura-Ace FC-9200 and Ultegra FC-8100 cranksets while maintaining accurate shift ramp timing and drivetrain efficiency.

A strong premium upgrade option for dealers building performance road race bikes requiring extended top-end gearing without compromising shift quality.

Key Features
  • Matched 54T outer / 38T inner combination
  • DA9200-specific configuration for Shimano 12-speed cranksets
  • Structural carbon fibre body with glossy 3K finish
  • CNC-machined AL7075-T6 alloy teeth for durability and precise shifting
  • Grade 5 titanium fixing elements
  • 110 BCD – 4-arm Shimano interface
  • Optimised for Shimano 12-speed and Shimano 11-speed road drivetrains
  • High torsional stiffness for efficient power transfer
  • 100% designed, developed, and manufactured in Italy
Specifications
  • Tooth Count: 54T outer / 38T inner
  • BCD: 110 mm
  • Mount: 4-arm (Shimano DA9200 interface)
  • Construction: Carbon fibre / AL7075-T6 alloy / Titanium Grade 5
  • Application: 2x Road / Race

Crank & Power Meter Compatibility

Compatible with 110 BCD – 4-arm cranksets including:

  • Shimano Dura-Ace FC-9200

  • Shimano Ultegra FC-8100

  • Shimano Dura-Ace FC-R9200-P power meter

  • SRM Origin (110 BCD – 4-arm)

  • Rotor INSpider

Groupset Compatibility
  • Shimano Dura-Ace R9200 (12-speed)
  • Shimano Ultegra R8100 (12-speed)
  • All previous Shimano 11-speed road groups
  • Not compatible with SRAM AXS 12-speed groups (use X-AXS chainrings instead)
Recommended Bolt Kit
  • X-Cover DA9200 kit – specific AL7075-T6 alloy kit for Shimano Dura-Ace R9200 cranksets
  • X-Fix ROAD kit – AL7075-T6 alloy, laser-engraved and available in multiple anodised colours
Workshop Note
The 54T outer ring can be paired with either the matching X-CarboRing EVO 38T or 40T inner ring, depending on the desired gearing range. Ensure correct pairing to maintain optimal shift ramp alignment and front shifting performance.

(XCRE5438I110DA9200)

SKU XCRE5438I110DA9200
Brand Carbon-Ti
Shipping Weight 0.5000kg
Shipping Width 0.020m
Shipping Height 0.250m
Shipping Length 0.250m
Shipping Cubic 0.250000000m3
