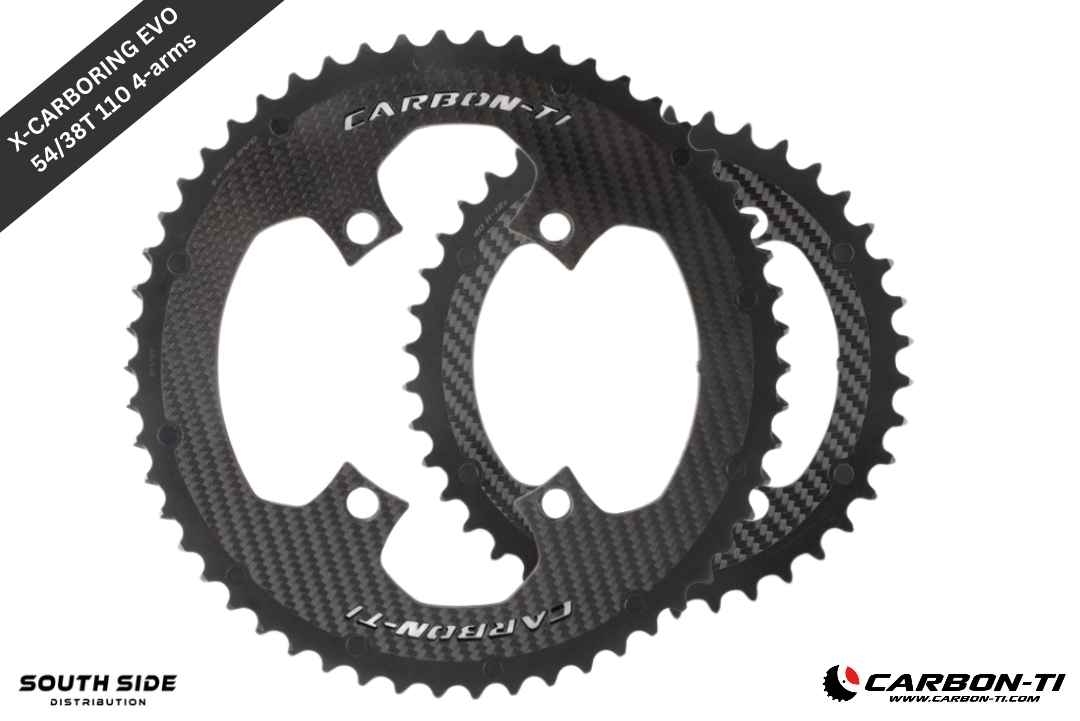

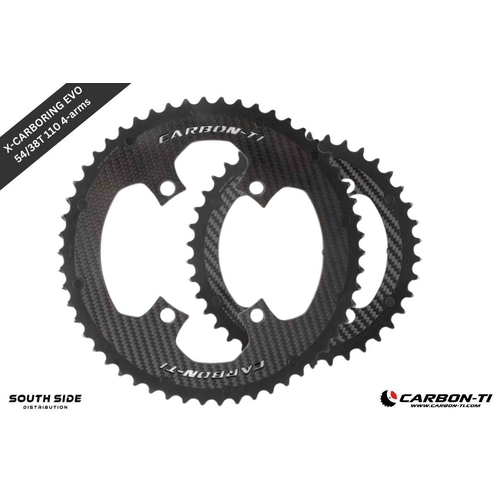

Carbon-Ti X-CarboRing EVO 54/38 x 110 (4-Arms) Chainrings
Lightweight Carbon Construction. Precision Shifting.

The Carbon-Ti X-CarboRing EVO 54/38 Chainring Set combines advanced carbon fibre construction with precision-machined aluminium chainrings to deliver a lightweight, high-performance upgrade for compatible Shimano road cranksets.
Featuring a 54-tooth outer chainring and 38-tooth inner chainring, this combination is designed for riders who prefer larger road gearing for racing, fast group rides and high-speed riding.
The X-CarboRing EVO uses a carbon fibre structural carrier combined with CNC-machined aluminium teeth, reducing weight while maintaining the stiffness required for efficient power transfer and precise front shifting.

Carbon Fibre Meets CNC Aluminium
The X-CarboRing EVO construction combines the structural advantages of carbon fibre with the durability and shifting performance of aluminium chainring teeth.
The carbon structure helps reduce unnecessary weight while providing a rigid platform for the chainrings, while carefully engineered shifting profiles support smooth transitions between the 54T and 38T rings.
The result is a premium chainring upgrade that combines performance, technical engineering and Carbon-Ti's distinctive aesthetic.
54/38T Performance Road Gearing
The 54/38T combination provides a larger outer chainring for riders who regularly maintain higher speeds, while retaining a 38T inner ring for climbing and varied terrain.
With a 16-tooth difference between the chainrings, the combination offers a familiar gearing step for riders accustomed to modern Shimano road double cranksets.

Key Features
  • Carbon-Ti X-CarboRing EVO chainring set
  • 54T outer / 38T inner configuration
  • Carbon fibre structural carrier
  • CNC-machined aluminium chainring teeth
  • 110 mm BCD, 4-arm mounting interface
  • Lightweight construction
  • Designed for efficient power transfer
  • Optimised tooth profiles for front shifting
  • Premium performance road application
Important Compatibility Information
Carbon-Ti offers several 110 mm, 4-arm chainring interfaces, so crankset compatibility must be checked carefully.

For the standard 110 mm 4-arm version, Carbon-Ti specifies SRM Origin and Rotor INSpider cranksets. Shimano Dura-Ace and Ultegra cranksets require their corresponding DA9200 or DA9100 versions.

The 38T inner ring is compatible with selected 54T EVO outer rings, but the correct pairing and mounting hardware must be confirmed.

Technical Specifications

Specification
Details
Chainring configuration
54T outer / 38T inner
Bolt circle diameter
110 mm
Mounting
4-arm
Construction
3K carbon fibre, AL7075-T6 aluminium, Grade 5 titanium
Outer ring weight
115 g
Inner ring weight
44 g
Combined ring weight
Approximately 159 g
Drivetrain compatibility
Shimano 11/12-speed, SRAM 11-speed
SRAM AXS 12-speed
Not compatible
Manufacture
Italy

Frequently Asked Questions
Are the Carbon-Ti X-CarboRing EVO 54/38 chainrings compatible with Shimano Dura-Ace?
  • The standard 110 mm 4-arm version is intended for compatible SRM Origin and Rotor INSpider cranksets. Shimano Dura-Ace requires the appropriate Shimano-specific chainring version.
Are these chainrings compatible with SRAM AXS 12-speed?
  • No. Carbon-Ti offers separate X-AXS chainrings for SRAM AXS 12-speed drivetrains.
Which chainring bolts should I use?
  • Carbon-Ti recommends its X-Fix ROAD fixing bolt kit for the standard 110 mm 4-arm interface.

(XCRE5438I110SH)

SKU XCRE5438I110SH
Brand Carbon-Ti
Shipping Weight 0.5000kg
Shipping Width 0.020m
Shipping Height 0.250m
Shipping Length 0.250m
Shipping Cubic 0.250000000m3
