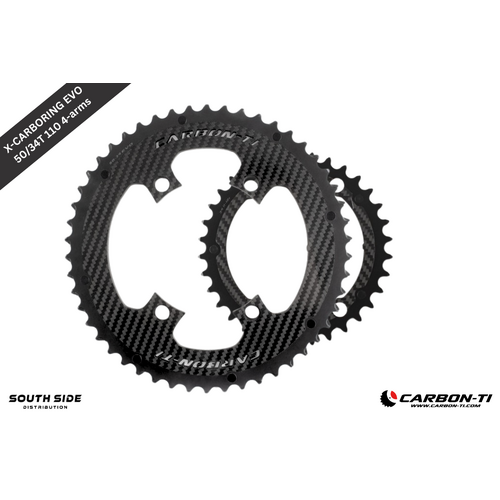

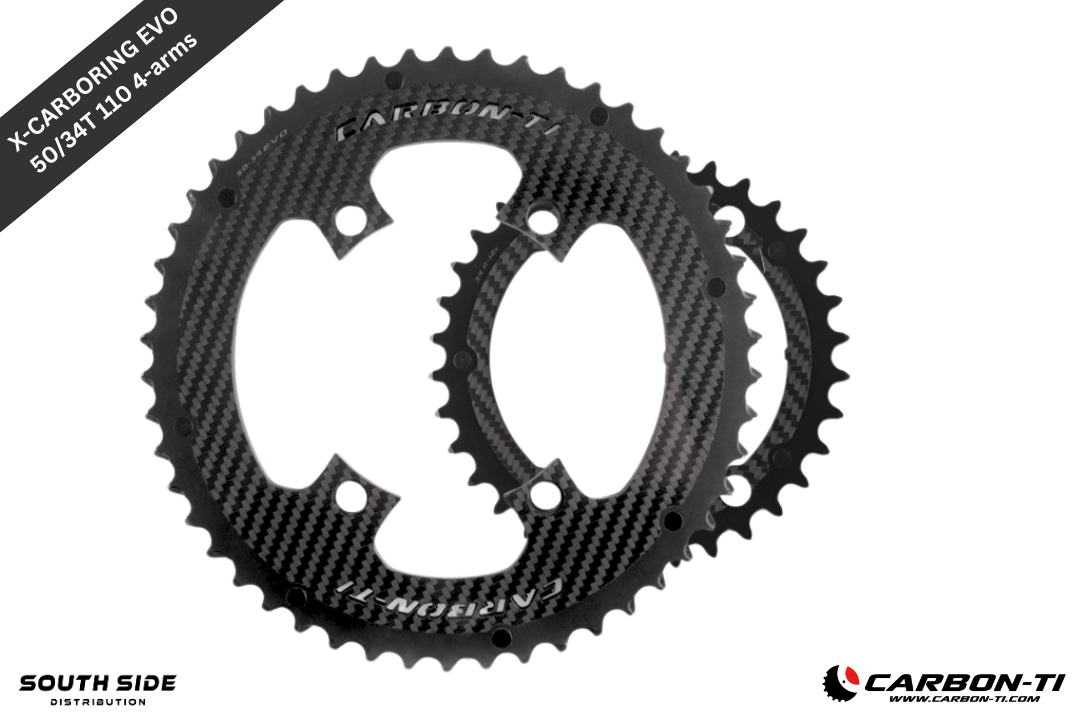

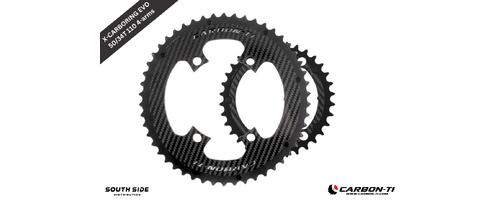

Carbon-Ti X-CarboRing EVO Chainring Set – 50/34T (110 BCD, 4-Arm)

The Carbon-Ti X-CarboRing EVO 50/34T is a premium compact chainring combination engineered for high-performance road applications. Manufactured in Italy, this matched outer and inner ring set combines a structural carbon fibre body with CNC-machined AL7075-T6 alloy teeth and Grade 5 titanium elements to deliver exceptional stiffness, reduced weight, and refined shifting performance.

Designed for 110 BCD – 4-arm cranksets, the EVO platform offers an ideal balance of climbing efficiency and high-speed capability, making it well suited to race builds, endurance road bikes, and premium custom projects.

A strong boutique upgrade category for dealers seeking lightweight drivetrain enhancements with premium visual appeal.

Key Features
  • Matched 50T outer / 34T inner compact combination
  • Structural carbon fibre body with glossy 3K finish
  • CNC-machined AL7075-T6 alloy teeth for durability and precise shifting
  • Grade 5 titanium fixing elements
  • 110 BCD – 4-arm interface
  • Optimised for Shimano 11–12 speed and SRAM 11 speed drivetrains
  • 100% designed, developed, and manufactured in Italy
Specifications
  • Tooth Count: 50T outer / 34T inner
  • BCD: 110 mm
  • Mount: 4-arm
  • Construction: Carbon fibre / AL7075-T6 alloy / Titanium Grade 5
  • Application: 2x Road
Crank & Power Meter Compatibility
Compatible with 110 BCD – 4-arm cranksets including:
  • SRM Origin (all models)
  • Rotor INSpider
Groupset Compatibility
  • Shimano Road 11 speed
  • Shimano Road 12 speed
  • SRAM 11 speed road groups
  • Not compatible with SRAM AXS 12 speed groups (use X-AXS chainrings instead)
Recommended Bolt Kit
  • X-Fix ROAD specific kit – AL7075-T6 alloy, laser-engraved and available in multiple anodised colours
Workshop Note
This 50T outer ring must be paired with the matching X-CarboRing EVO 34T inner ring to ensure correct shift ramp alignment and optimal front shifting performance.

(XCRE5034I110SH)

SKU XCRE5034I110SH
Brand Carbon-Ti
Shipping Weight 0.5000kg
Shipping Width 0.020m
Shipping Height 0.250m
Shipping Length 0.250m
Shipping Cubic 0.250000000m3
