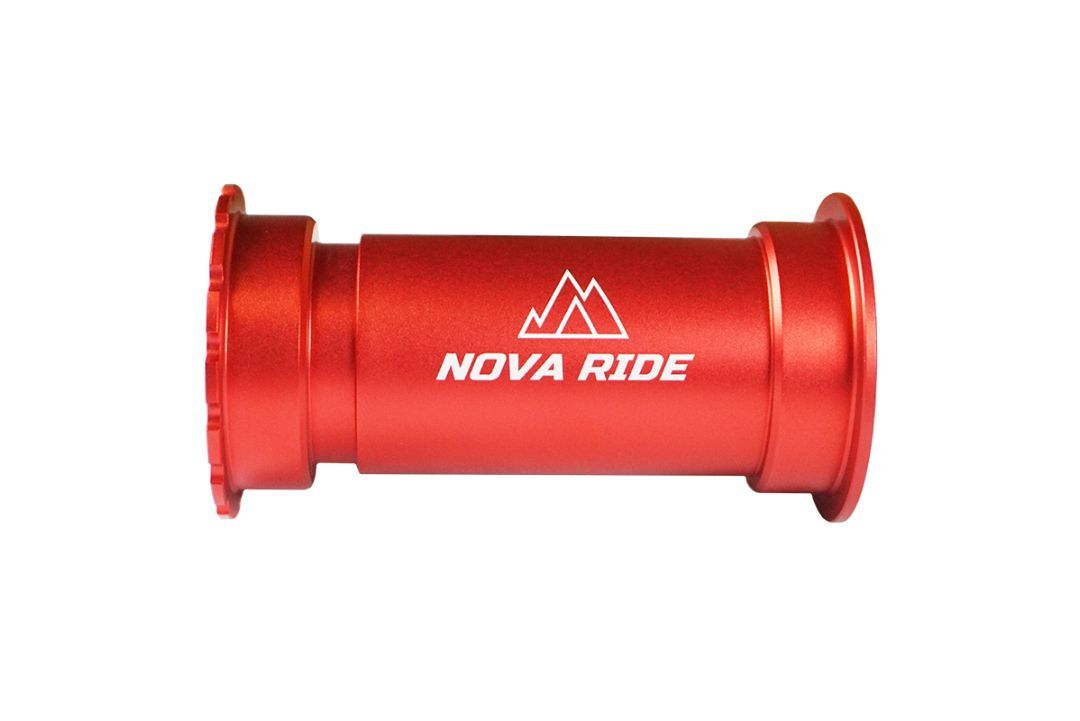

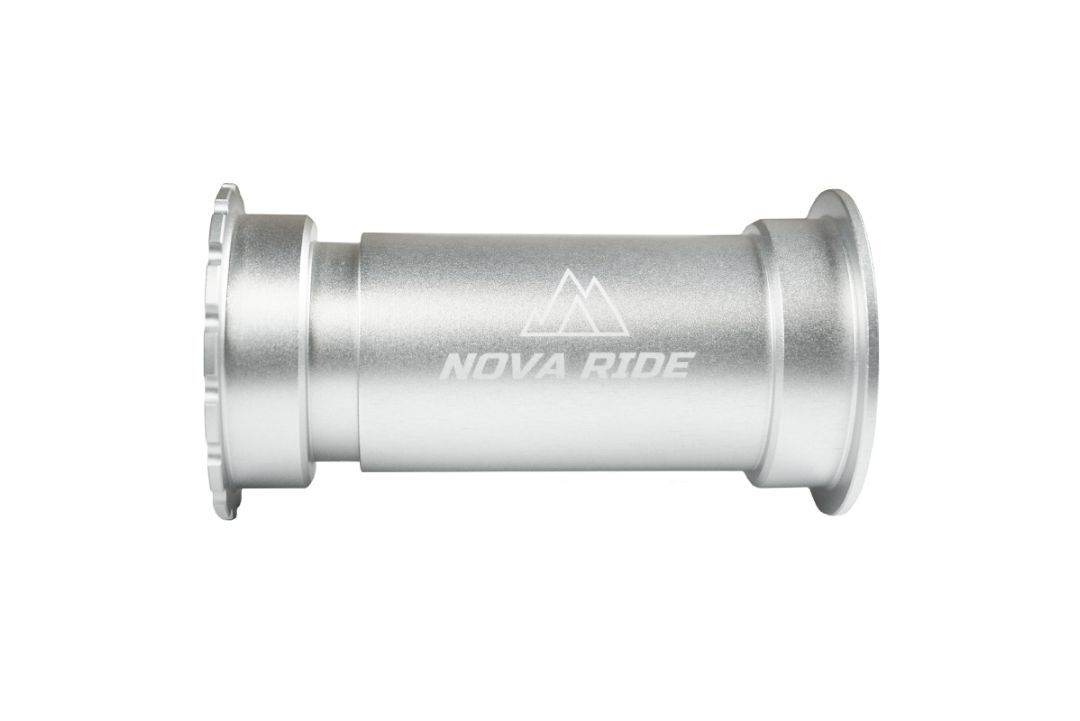

Nova Ride Bottom Bracket PF MTB - Shimano

The threaded solution developed by Nova Ride regarding Press Fit bottom brackets allows to perfectly align the two cups, which remove cracks and enhance the durability and the fluidity of bearings. This threaded solution facilitates the bottom bracket mounting and maintenance, and mainly allows to increase the bottom bracket rigidity by fixing the two cups together.

Made with high-end materials: two 7075 aluminum cups CNC machined anodized allows better rigidity and coupled with ceramic ball bearings which reduces crankset frictions and improves your drivetrain transmission.

Included in the box :
- Bottom bracket.
- Special Nova Ride tool to tighten your bottom bracket during installation.

Compatibility :
PF MTB (PF92, BB92)

Characteristics :
Shell width : 89,5 / 92mm
Internal shell diameter : 41mm
Crankset Diameter : 24mm

Shimano, Rotor, FSA Mega-Exo 24mm axis cranksets.

Weight : 146 g
